ULTIMA-TEK

Family Ultima-tek - Electronic enclosures - Plastic

Description

ULTIMA-TEK: Designed for designers and developers in the industrial, embedded, and consumer sectors. ULTIMA-TEK enclosures are made of high-quality ABS and guarantee:

  • IP65 protection against dust and water jets,
  • mechanical resistance and thermal stability,
  • modular design with various sizes and heights,

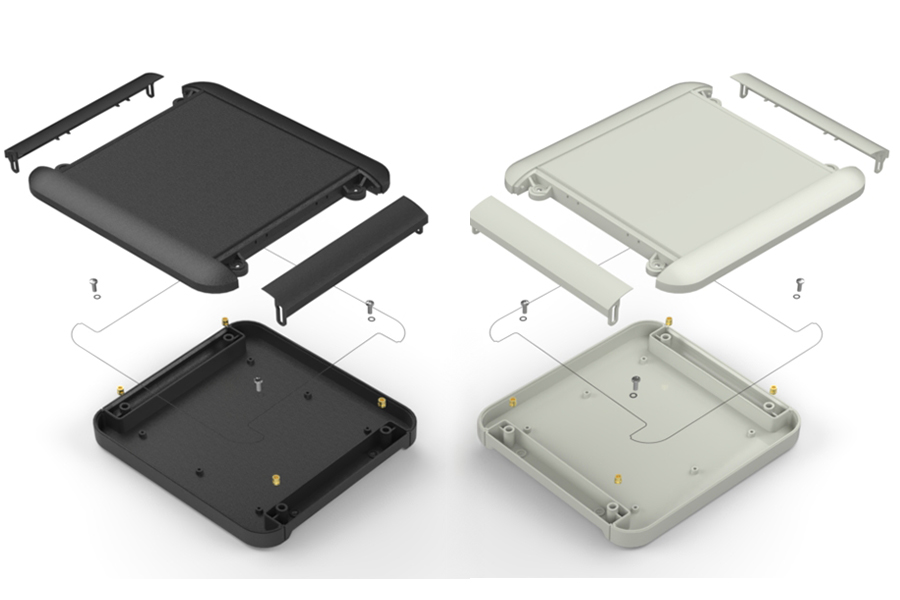

  • easy assembly thanks to four stainless steel screws and internal PCB columns.

These features reduce design time, offer customizable solutions, and enhance final products with a modern design. Furthermore, thanks to CNC machining, laser marking, and digital printing services, customers can customize enclosures to their needs, with ongoing technical support.

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

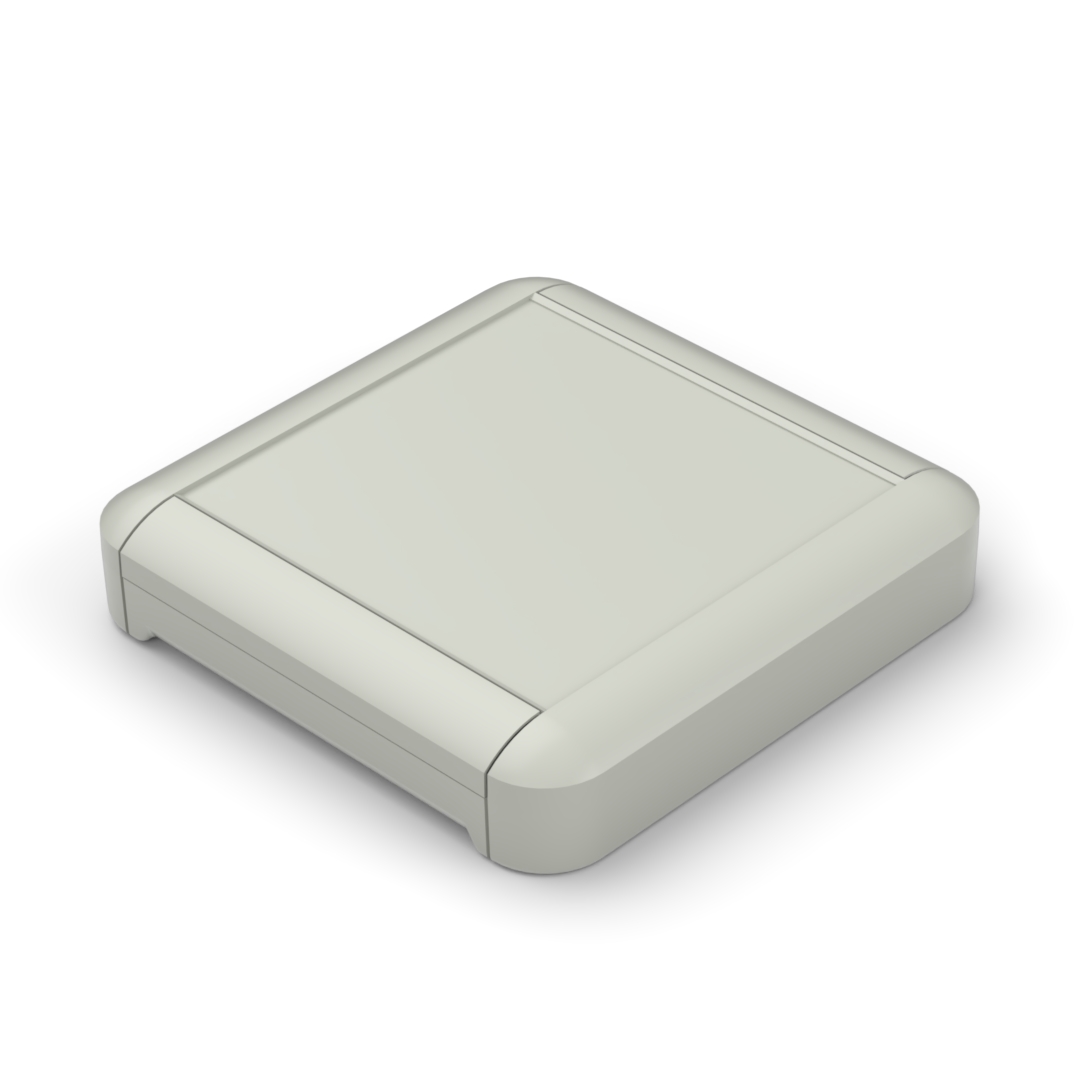

TW21.7
NEW
175 175 36 9002
UG UV 0120 168 134 4   PDF
DWG
View
  • Color (Ral): 9002
  • Material: UG UV 0120
  • MAX PCB L (mm): 168
  • MAX PCB W (mm): 134
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

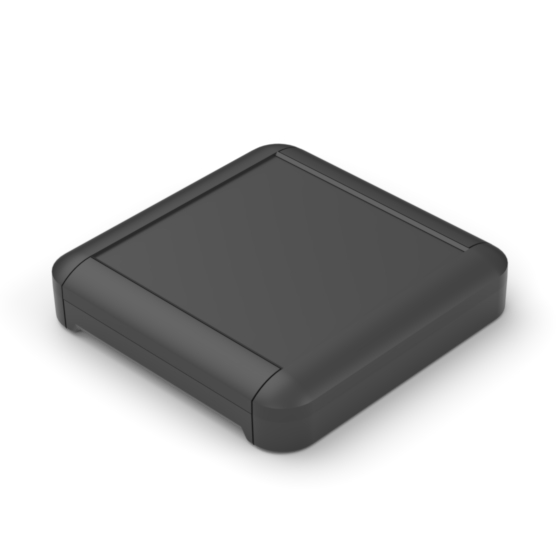

TW21.9
NEW
175 175 36 9004
UG UV 0120 168 134 4   PDF
DWG
View
  • Color (Ral): 9004
  • Material: UG UV 0120
  • MAX PCB L (mm): 168
  • MAX PCB W (mm): 134
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

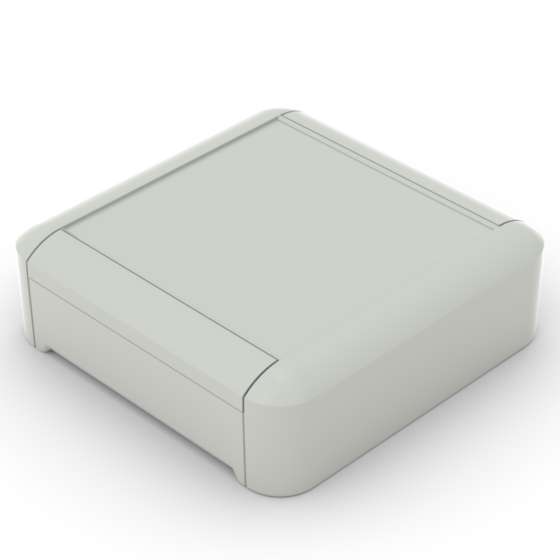

TW22.7
NEW
175 175 56 9002
UG UV 0120 168 134 4   PDF
DWG
View
  • Color (Ral): 9002
  • Material: UG UV 0120
  • MAX PCB L (mm): 168
  • MAX PCB W (mm): 134
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

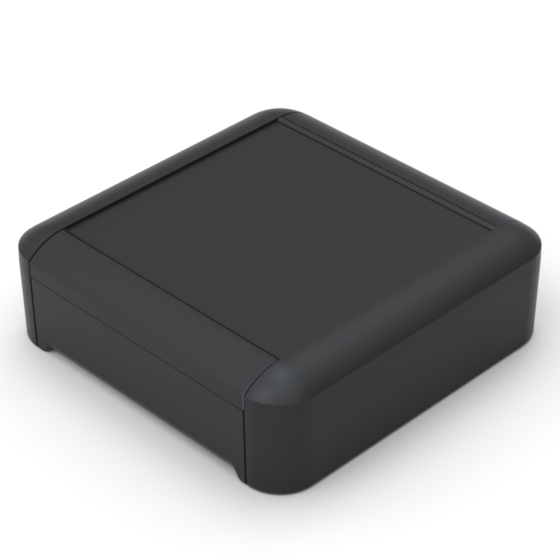

TW22.9
NEW
175 175 56 9004
UG UV 0120 168 134 4   PDF
DWG
View
  • Color (Ral): 9004
  • Material: UG UV 0120
  • MAX PCB L (mm): 168
  • MAX PCB W (mm): 134
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG
13 product families, 154 series. You can't find what you're looking for? Contact us
