TK S

Family Handheld - Electronic enclosures - Plastic

Description

ABS enclosures with a 1.8 mm recessed area suitable for a keypad membrane or an aluminium panel. Base and cover have integral PCB guides (Eurocard 100 x 160 mm) and mounting studs. Matt surface finish. The models with “KK” have an IP65 sealing kit. Closing by four screws. Upon request aluminium panel (Mod. APTK), ABS wall mounting tabs (Mod. MT2).

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

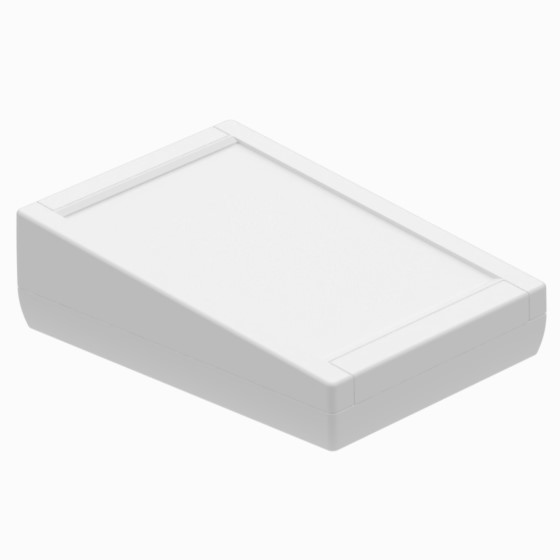

TK11S.7 188,5 133,5 56,5 9002
FORMACROM 9249FC 176 119 4 - APTK
MT2
PDF
DWG
View
TK11S.9 188,5 133,5 56,5 9004
TERLURAN GP-35 176 119 4 - APTK
MT2
PDF
DWG
View

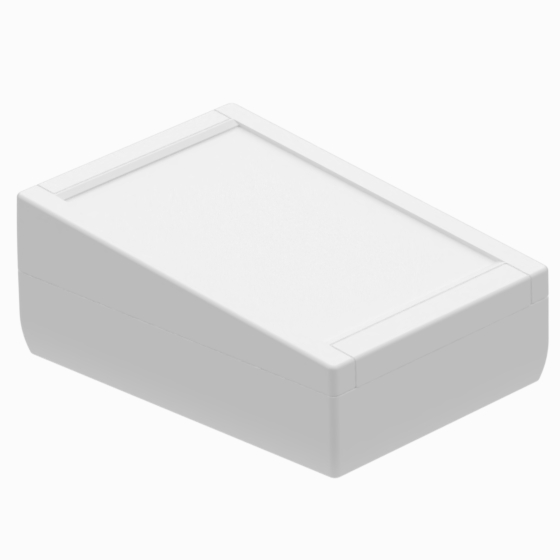

TK33S.7 188,5 133,5 75,8 9002
FORMACROM 9249FC 176 119 4 - MT2
PDF
DWG
View

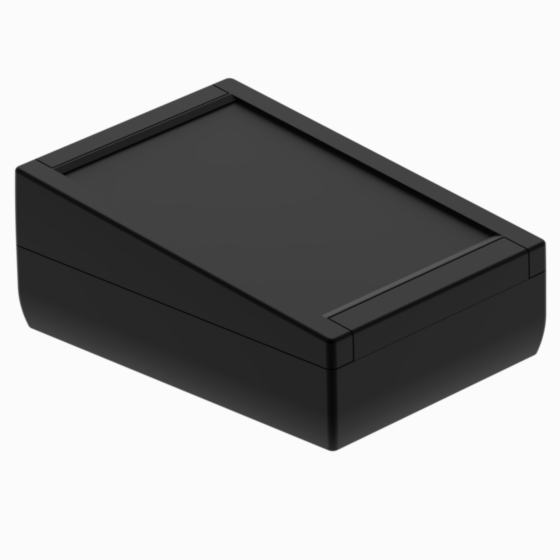

TK33S.9 188,5 133,5 75,8 9004
TERLURAN GP-35 176 119 4 - MT2
PDF
DWG
View
TKK11S.7 188,5 133,5 56,5 9002
FORMACROM 9249FC 176 119 4 - APTK
MT2
PDF
DWG
View

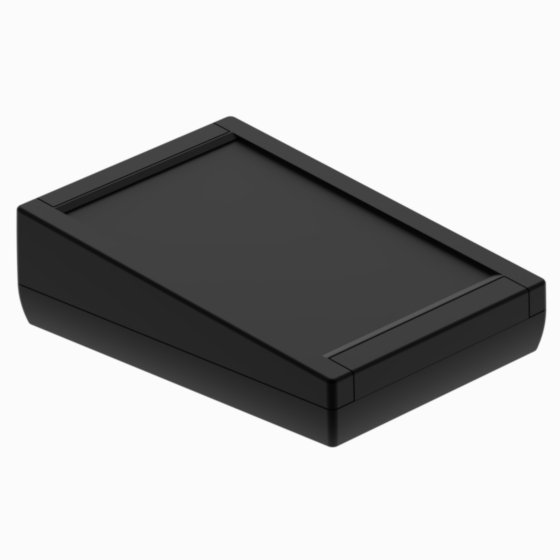

TKK11S.9 188,5 133,5 56,5 9004
TERLURAN GP-35 176 119 4 - APTK
MT2
PDF
DWG
View
TKK33S.7 188,5 133,5 75,8 9002
FORMACROM 9249FC 176 119 4 - MT2
PDF
DWG
View
TKK33S.9 188,5 133,5 75,8 9004
TERLURAN GP-35 176 119 4 - MT2
PDF
DWG
View
