TENCLOS FLAT

Family Handheld - Electronic enclosures - Plastic

Description

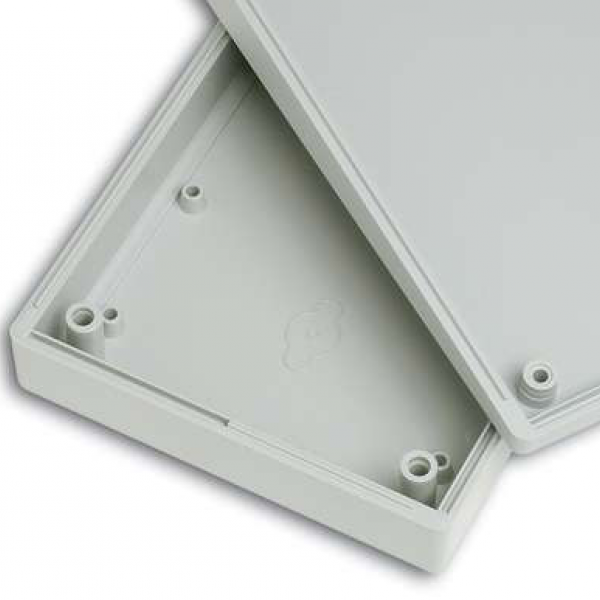

ABS enclosures with a recessed area to allow an 0.5 mm anodised aluminium panel. Base and cover have integral PCB mounting studs. The models with “F-B” have 9V battery compartment with snap-on cover. Matt surface finish. Closing by four screws. The models with “F” and “F-B” have neither aluminium panel nor recessed area. Upon request ABS mounting tabs (Mod. MT1).

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

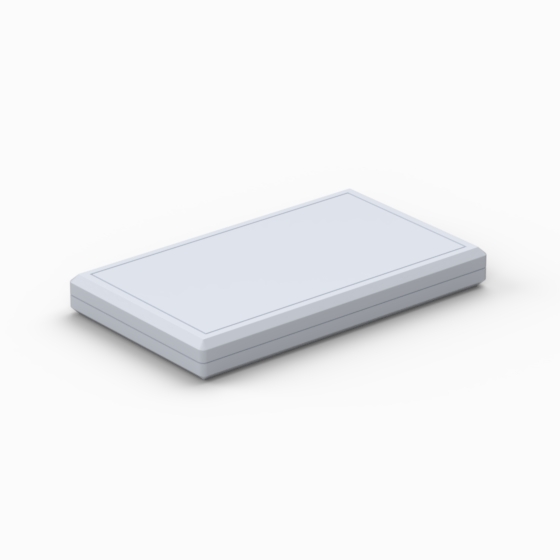

450F.5 145 85 17 9018
AG-ATY 135,2 75,2 4 - M
M58
M59
MT1
PDF
DWG
View

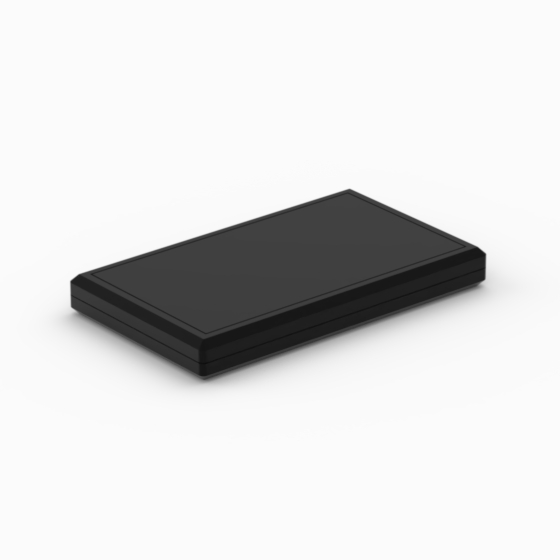

450F.9 145 85 17 9004
TERLURAN GP-35 135,2 75,2 4 - M
M58
M59
MT1
PDF
DWG
View

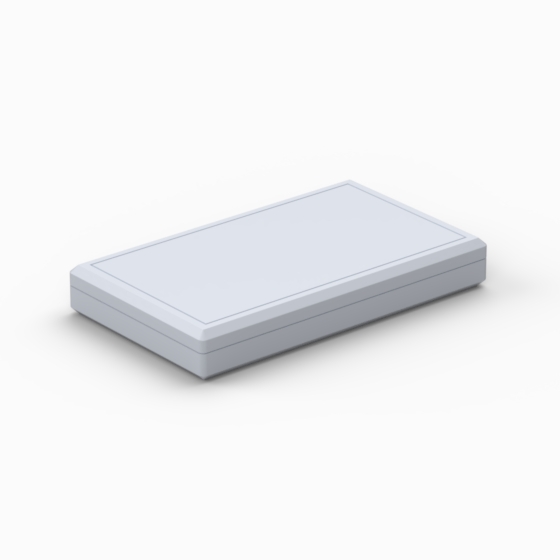

550F.5 145 85 21 9018
AG-ATY 135,2 75,2 4 - M
M58
M59
MT1
PDF
DWG
View

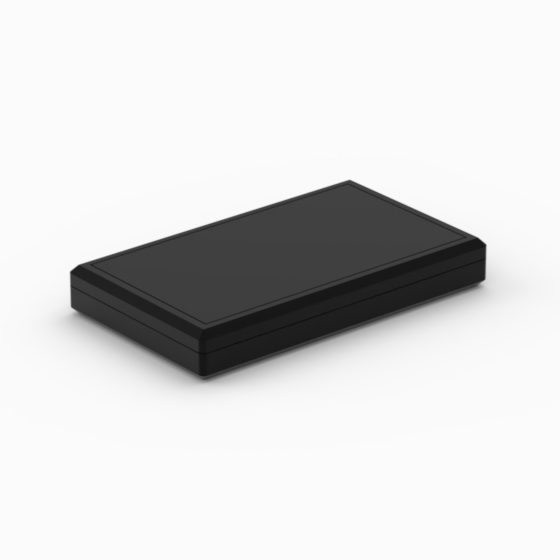

550F.9 145 85 21 9004
TERLURAN GP-35 135,2 75,2 4 - M
M58
M59
MT1
PDF
DWG
View

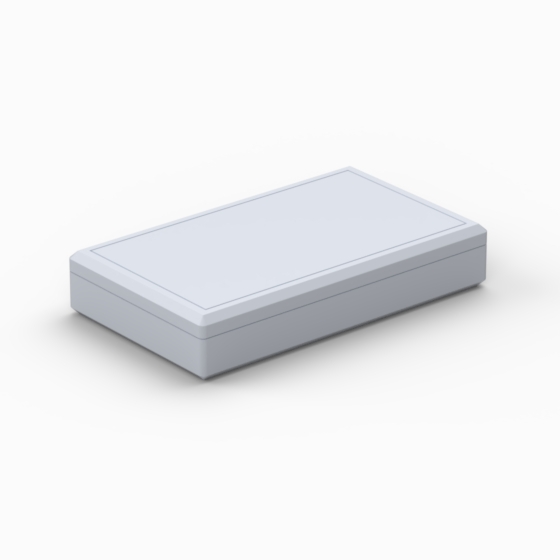

660F.5 145 85 27 9018
AG-ATY 135,2 75,2 4 - M
M58
M59
MT1
PDF
DWG
View

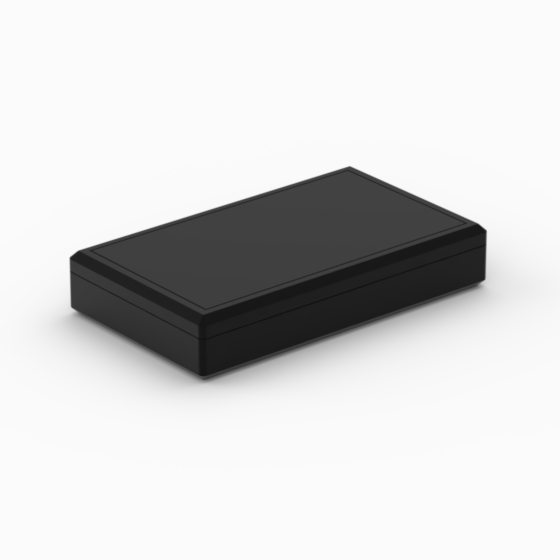

660F.9 145 85 27 9004
TERLURAN GP-35 135,2 75,2 4 - M
M58
M59
MT1
PDF
DWG
View

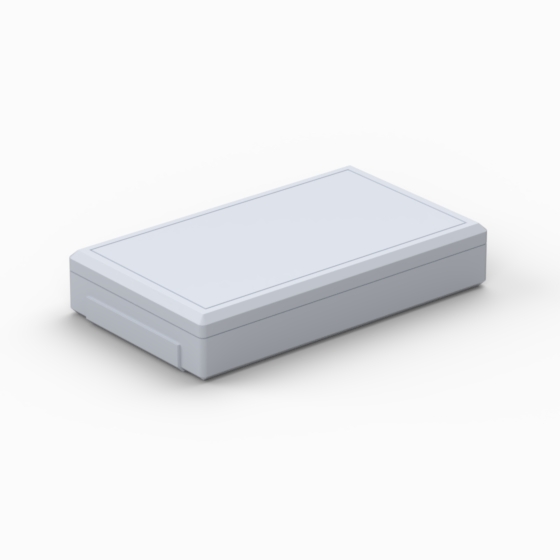

660F-B.5 145 85 27 9018
AG-ATY 97,6 75,2 4 1 x 9V AB9
M
M58
M59
PDF
DWG
View

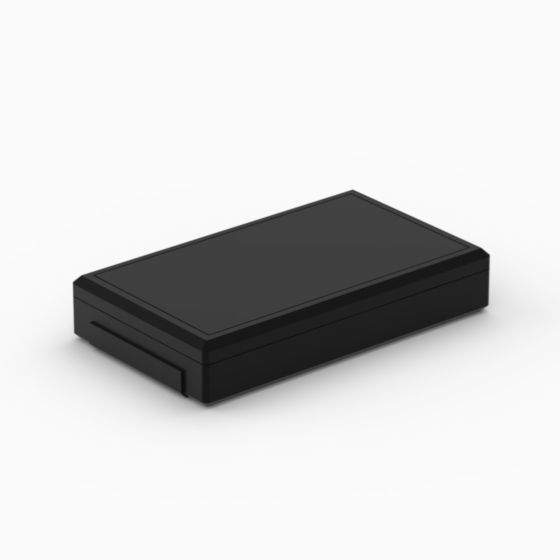

660F-B.9 145 85 27 9004
TERLURAN GP-35 97,6 75,2 4 1 x 9V AB9
M
M58
M59
PDF
DWG
View

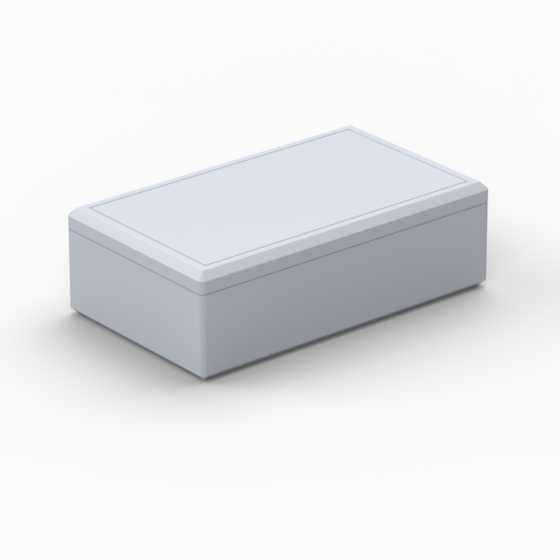

770F.5 145 85 45 9018
AG-ATY 135,2 75,2 4 - M
M58
M59
MT1
PDF
DWG
View

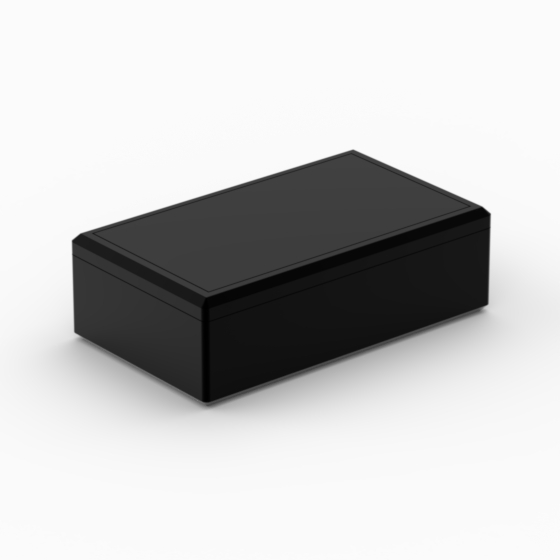

770F.9 145 85 45 9004
TERLURAN GP-35 135,2 75,2 4 - M
M58
M59
MT1
PDF
DWG
View
