MINI TK

Family Handheld - Electronic enclosures - Plastic

Description

Compact ABS enclosures with a 1.8 mm recessed area suitable for a keypad membrane or an aluminium panel. Base and cover have integral PCB mounting studs. The model “TK-S” has inclined cover. Matt surface finish. Closing by four screws. Upon request ABS mounting tabs “MT2”.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

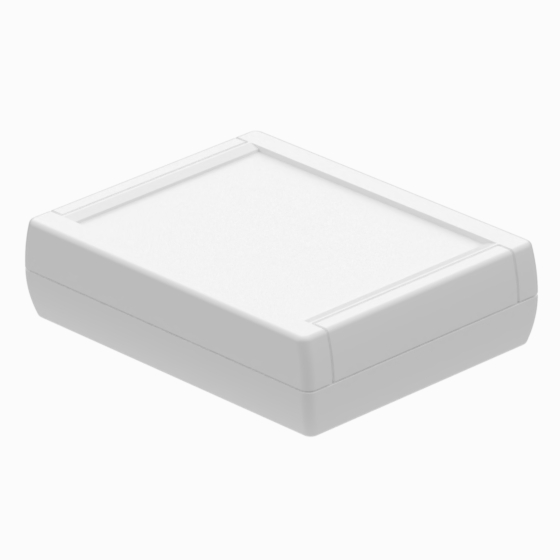

TK-F.7 130 100 34,2 9002
FORMACROM 9249FC 122 92 4 - M53
MT2
PDF
DWG
View

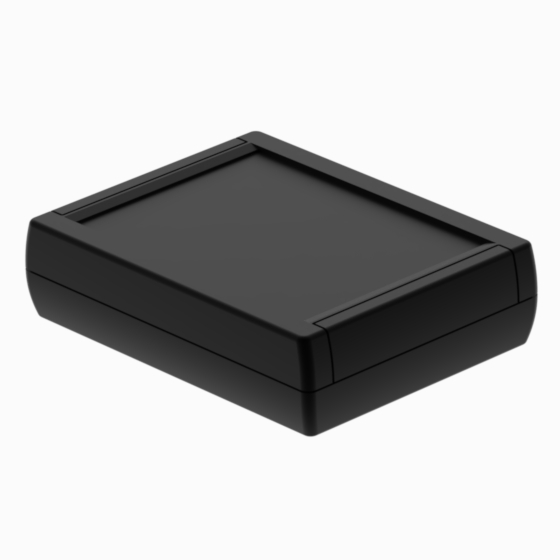

TK-F.9 130 100 34,2 9004
TERLURAN GP-35 122 92 4 - M53
MT2
PDF
DWG
View

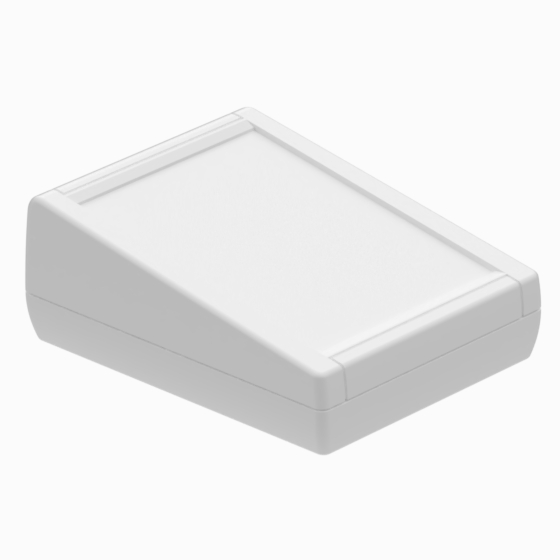

TK-S.7 130 100 50 9002
FORMACROM 9249FC 122 92 4 - M53
MT2
PDF
DWG
View

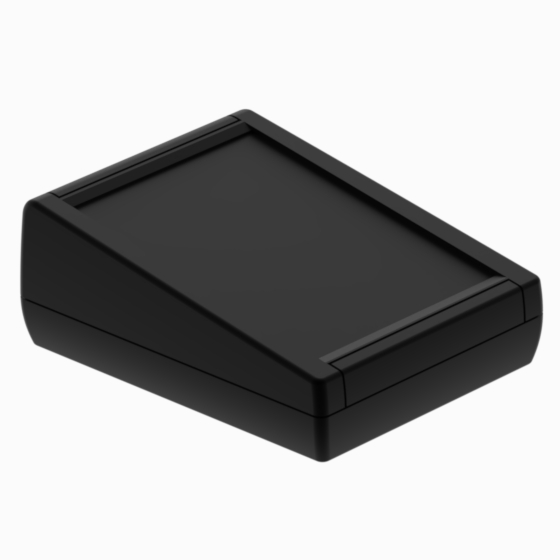

TK-S.9 130 100 50 9004
TERLURAN GP-35 122 92 4 - M53
MT2
PDF
DWG
View
