KL-AUS HANDLE

Family Front Panel - Electronic enclosures - Plastic

Description

ABS enclosures with a handle that can be locked in any of eight positions and used as a stand. Vented cover and base for aeration. Front and rear 1 mm aluminium panels. Each half-shell has integral PCB guides and mounting studs. Matt surface finish. Closing by eight screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

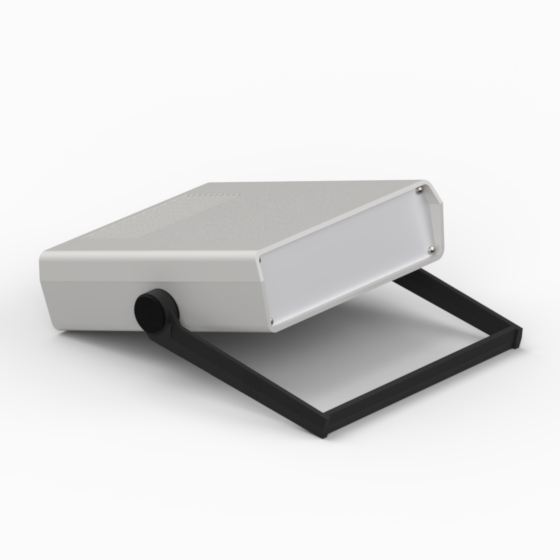

AUS-41.5 198 178 54 9018
AG-ATY 170 162 8 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 170
  • MAX PCB W (mm): 162
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
AUS-41.9 198 178 54 9004
P2H-AT 170 162 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 170
  • MAX PCB W (mm): 162
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

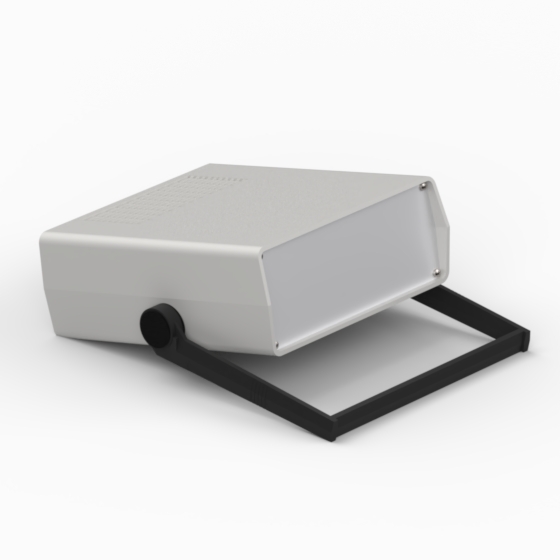

AUS-44.5 198 178 72 9018
AG-ATY 170 162 8 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 170
  • MAX PCB W (mm): 162
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

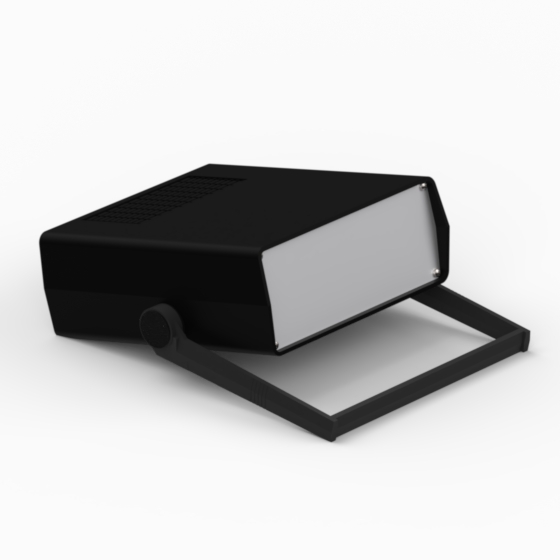

AUS-44.9 198 178 72 9004
P2H-AT 170 162 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 170
  • MAX PCB W (mm): 162
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

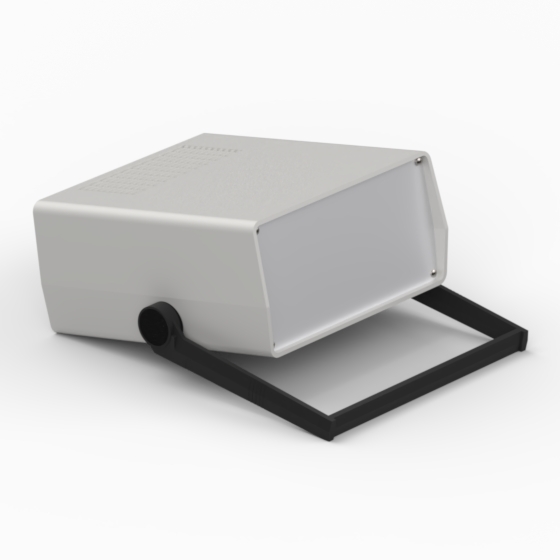

AUS-45.5 198 178 90 9018
AG-ATY 170 162 8 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 170
  • MAX PCB W (mm): 162
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

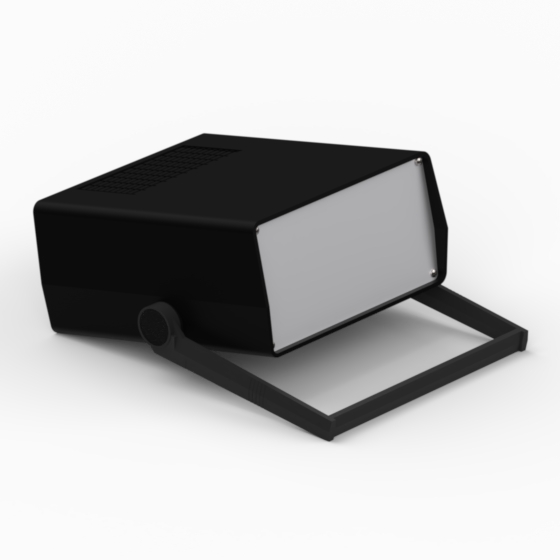

AUS-45.9 198 178 90 9004
P2H-AT 170 162 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 170
  • MAX PCB W (mm): 162
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

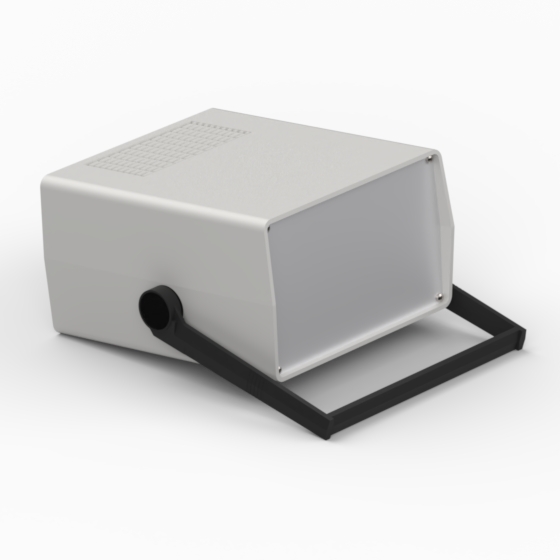

AUS-55.5 198 178 108 9018
AG-ATY 170 162 8 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 170
  • MAX PCB W (mm): 162
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

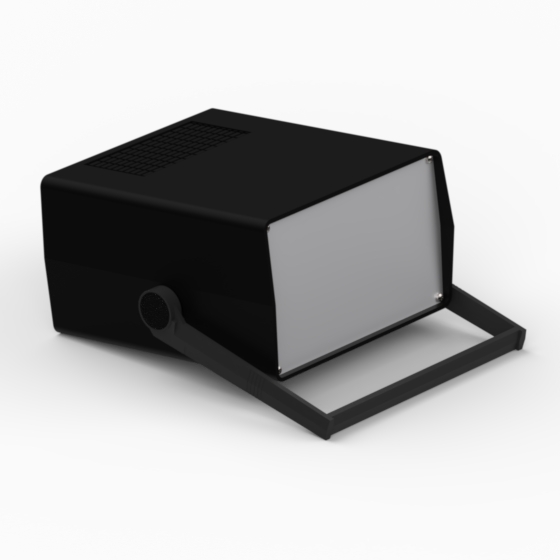

AUS-55.9 198 178 108 9004
P2H-AT 170 162 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 170
  • MAX PCB W (mm): 162
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

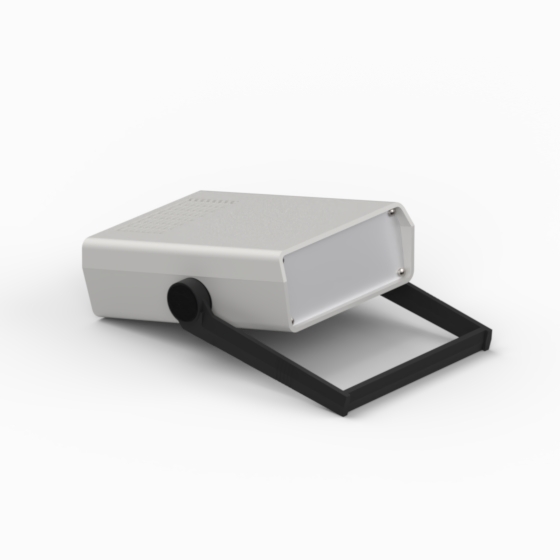

KL-41.5 178 128 54 9018
AG-ATY 150 115 8 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 150
  • MAX PCB W (mm): 115
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

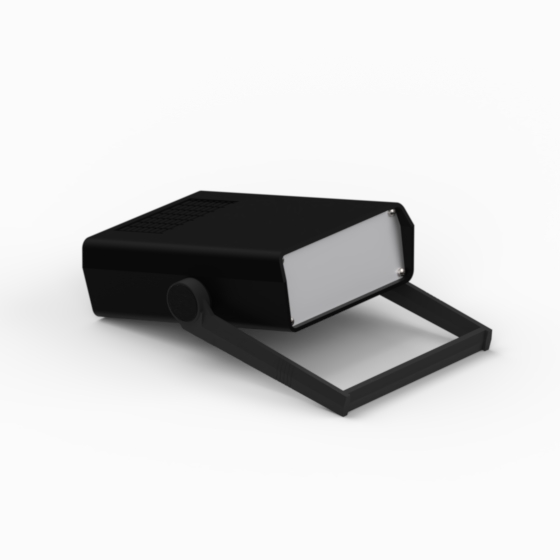

KL-41.9 178 128 54 9004
P2H-AT 150 115 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 150
  • MAX PCB W (mm): 115
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

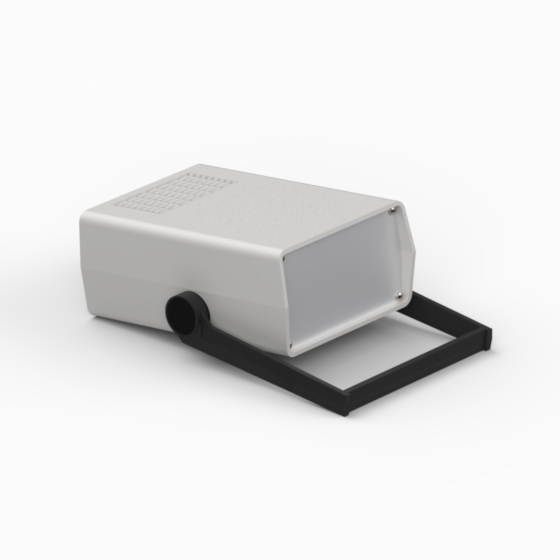

KL-44.5 178 128 72 9018
AG-ATY 150 115 8 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 150
  • MAX PCB W (mm): 115
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

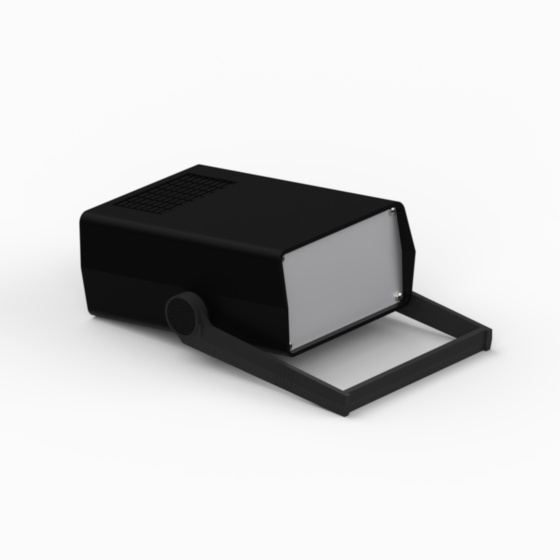

KL-44.9 178 128 72 9004
P2H-AT 150 115 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 150
  • MAX PCB W (mm): 115
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
